Complex Multilayer PCB Designs That Work First Time

From concept to production, we create multilayer PCB designs that help your products achieve higher performance, better reliability, and faster time-to-market.

Multilayer PCB Design

Why Choose Multilayer PCB Design?

Choosing multilayer PCB design isn’t just a technical upgrade—it’s a strategic move that lets your products handle more functions, stay compact, and operate with stability even under demanding conditions.
It’s how innovative brands turn design complexity into real-world performance.

Higher Circuit Density

Fit more functionality into less space—ideal for smart, compact, and portable devices.
You can achieve better performance without expanding board size or cost.

Enhanced Signal Integrity

Multilayer structures reduce noise and crosstalk, keeping your signals clean and stable.
Your products perform consistently, even in high-speed or high-frequency environments.

Improved Design Flexibility

Improved Design Flexibility

Multiple layers let you separate analog, digital, and power sections effectively.
You get greater design freedom while avoiding signal interference and layout rework.

Our Multilayer PCB Design Capabilities

We design multilayer PCBs that work not just on paper but in mass production.
By combining electrical engineering with real factory insights, we help you avoid DFM issues, shorten your iteration cycle, and cut prototyping costs.

pcb layer
  • Layer Count: 2 to 32+ Layers

  • Controlled Impedance Design

  • Mixed-Signal & RF Layout

  • Thermal Management & Heat Dissipation Planning

  • High-Density BGA & Component Escape Routing

  • Rigid-Flex & Multiboard System Design

Supporting Subheading

A Transparent Process from Concept to Production

Our workflow keeps your project on schedule, with full visibility and technical feedback at every stage.
You’ll know exactly how your multilayer board is optimized for both performance and manufacturability—no surprises during production.

Requirement Analysis

We start by clarifying your performance goals, environmental conditions, and compliance standards. This ensures every design decision serves your real-world application and cost expectations.

Stack-Up & Material Planning

Each layer is strategically configured with proper dielectric materials and copper thickness. You gain a balance between signal integrity, mechanical strength, and manufacturability.

Layout & Routing Optimization

We handle high-speed signal routing, controlled impedance, and power plane design — all verified against real factory DFM standards to prevent costly rework.

Simulation & Validation

Our engineers perform electrical and thermal simulations to identify signal loss, EMI, or heat issues early. This minimizes design iterations and accelerates time to market.

Prototype Fabrication & Testing

After design validation, we build prototypes in-house for functional verification. You receive tested boards to evaluate performance before committing to full-scale production.

Mass Production & Quality Assurance

Once approved, your design moves directly into automated fabrication and assembly lines. Every batch undergoes AOI, impedance, and electrical testing to guarantee stable performance and consistent quality.

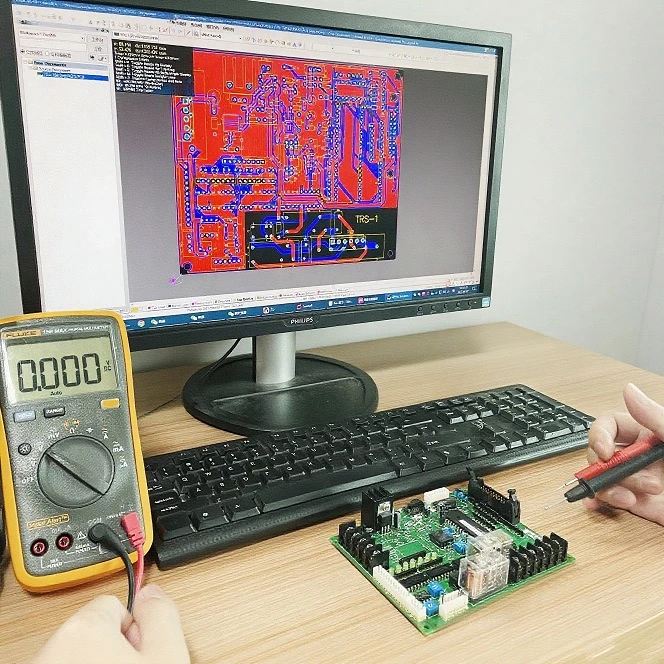

IWDF Solution PCB Design Services

We Design with Manufacturing in Mind

Unlike agencies that only handle the “design” part, we integrate our factory’s real production data into every layout decision. That means fewer errors, lower cost, and smoother mass production for your project.

Our Multilayer PCB Manufacturing Capabilities

Our advanced manufacturing facility is equipped with the specialized technology required for true HDI production, ensuring your complex design is executed with precision.

Capability Item Our Specifications
Standard Layer Count 4-32 Layers
Advanced Layer Count Up to 40 Layers
Board Thickness 0.4mm - 5.0mm
Min. Trace/Space 3/3 mil (4/4 mil for high yield)
Impedance Control ±10% tolerance
Material FR-4, High Tg, Halogen-Free, Rogers
Surface Finish ENIG, HASL, Immersion Tin/ Silver, OSP

Multilayer PCB Designs Across Industries

Whether you’re building next-generation EV controllers or compact IoT devices, our multilayer PCB designs help you achieve high functionality without sacrificing reliability or cost efficiency.

  • Powertrain & Chassis: Engine/Transmission ECUs, Electric Power Steering (EPS) Controllers, Anti-lock Braking System (ABS) Modules.

  • Body & Comfort: Central Body Controllers, Smart Seat Control Units, Advanced Lighting Controllers.

  • In-Vehicle Systems: Telematics Control Units (TCUs), Digital Audio Amplifiers, Rear-Seat Entertainment Controllers.

  • Major Appliances: Smart Refrigerator Control Boards, Washing Machine/Dryer Controllers, HVAC System Motherboards.

  • Home Entertainment & Computing: Smart TV Mainboards, Gaming Console Motherboards, Desktop PC Motherboards.

  • Smart Home & Security: Home Automation Hubs, Security System Control Panels, Smart Meter Communication Modules.

  • Factory Automation: PLCs, Motor Drives (VFDs/Servo), Industrial Ethernet Switches, Robotic Arm Controller Boards.

  • Process & Measurement: Distributed Control Systems (DCS), Data Acquisition (DAQ) Modules, Precision Sensor Interface Boards, Industrial HMI Controllers.

  • Power & Heavy Machinery: Welding Equipment Controllers, Industrial Laser Power Supplies, Elevator Control Boards.

  • Patient Monitoring: Vital Signs Monitors, Portable ECG/EEG Devices, Central Station Workstations.

  • Diagnostic Imaging: Ultrasound System Beamformers, Digital X-Ray Panel Controllers, Blood Analyzer Mainboards.

  • Therapeutic & Lab: Dialysis Machine Controllers, Laboratory Automation Controllers, Dental Equipment Control Panels.

  • Renewable Energy: Solar Inverter Control & Monitoring Boards, Wind Turbine Pitch Controllers.

  • Energy Storage: Battery Management Systems (BMS) for ESS, EV Charging Station Control Units.

  • Power Quality: Uninterruptible Power Supply (UPS) Logic Boards, Active Power Factor Correction (PFC) Controllers.

  • Renewable Energy: Solar Inverter Control & Monitoring Boards, Wind Turbine Pitch Controllers.

  • Energy Storage: Battery Management Systems (BMS) for ESS, EV Charging Station Control Units.

  • Power Quality: Uninterruptible Power Supply (UPS) Logic Boards, Active Power Factor Correction (PFC) Controllers.

  • Wired Infrastructure: Enterprise Router/ Switch Backplanes, Optical Line Terminal (OLT) Cards, Network Attached Storage (NAS) Controllers.

  • Wireless & Access: 4G/LTE Macro & Small Cell Baseband Units, Microwave Backhaul Radios, Satellite Modem Boards.

  • Customer Premise Equipment: Integrated Access Devices (IADs), VoIP Conference Systems, Mesh Wi-Fi Router Motherboards.

Case Display

From Prototypes to Production-Ready Boards

Each project we deliver reflects a balance between performance, cost, and manufacturability.
Explore some examples of multilayer PCB designs that helped our clients move from concept validation to market success.

8 Layer HDI PCB Design for Robot
10 Layer High RF PCB
8 Layer High RF PCB

Let’s Start Your Next Multilayer PCB Product

Usually 3–7 working days, depending on layer count and design complexity.
We aim to minimize lead time while maintaining accuracy and manufacturability.

Yes. We can optimize your existing files for better signal integrity, EMI control, or manufacturability—saving you redesign costs.

Yes. Our one-stop service covers PCB design, fabrication, and assembly to ensure seamless project continuity.

That’s fine. We can start from your schematic or design brief and deliver a full multilayer PCB design ready for fabrication.
