Professional PCBA Assembly Services You Can Trust
PCBA (Printed Circuit Board Assembly) is the critical process of precisely soldering electronic components onto PCBs—a cornerstone of modern electronics manufacturing. IWDF Solutions provides full turnkey PCB assembly and contract manufacturing services- encompassing component procurement, precision assembly, rigorous testing, and final packaging. Whether you need rapid prototypes or high-volume production runs, our state-of-the-art facility and experienced team ensure your boards are assembled to the highest standards.
Core Service Types:
SMT (Surface Mount Technology) Assembly – Ultra-precise placement of micro-components with speeds up to 15,000 placements per hour
THT (Through-Hole Technology) Assembly – Manual and automated insertion of traditional through-hole components
Mixed Assembly Solutions – Seamless integration of both SMT and THT on a single board
Advanced Packaging – BGA, CSP, and fine-pitch component assembly for cutting-edge applications
Specialized Processes – Wave soldering, selective soldering, eutectic soldering, and conformal coating
Advanced Assembly Capabilities Meeting Global Standards
Transparency builds trust. Here are the key technical specifications of our flex PCB manufacturing capabilities, empowering you to make an informed decision with the confidence that we can deliver to your exact requirements.
| Capability | Specification |
|---|---|
| Minimum Component Size | 0201 (0.6mm × 0.3mm) and smaller BGAs |
| Maximum PCB Size | 40″ × 40″ (1,000mm × 1,000mm) |
| Component Placement Accuracy | ±99% first-pass placement success |
| Maximum BGA Ball Count | 1,500+ pins |
| Placement Speed | Up to 15,000 components per hour |
| Soldering Process Options | Lead-free (RoHS), Lead-tin conventional, or mixed per requirement |
| Quality Inspection Methods | SPI, AOI, X-ray, ICT, functional testing, and FAI |
| Production Flexibility | Prototypes, low-volume, mid-volume, and high-volume runs |
Soldering & Processing Technologies
Reflow soldering with nitrogen capability for high-reliability applications
Wave soldering for THT and mixed assemblies
Selective soldering for fine-pitch and dense boards
Hand-solder capability for custom and rework needs
Material & Component Support
RoHS and REACH compliant processing
Lead-free and conventional solder options
Support for all major component package types (QFP, BGA, CSP, 0201+, and more)
Conformal coating for moisture and environmental protection
Testing & Quality Assurance
In-Circuit Testing (ICT): Automated functional verification of all connections

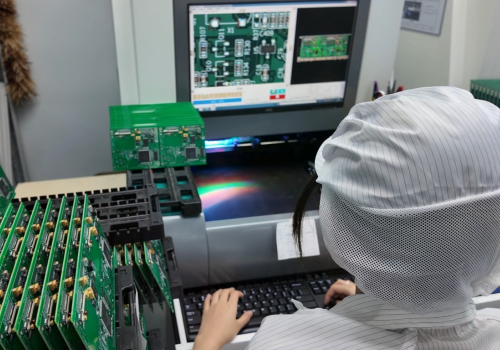

Automated Optical Inspection (AOI): Real-time detection of solder joint defects and component misalignment
X-ray Inspection: Non-destructive analysis of hidden solder joints, particularly for BGA packages
Functional Testing: Custom test programs ensuring your boards perform as specified
PCBA Manufacturing Process
Our Proven Manufacturing Process - Quality at Every Step

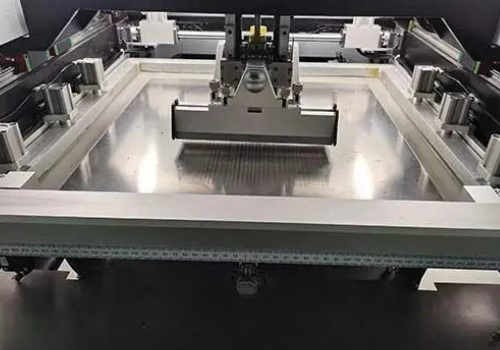

1. Solder Paste Printing
High-precision stencil printing deposits the exact amount of solder paste onto each pad. Calibrate for optimal paste height and coverage to ensure consistent soldering.

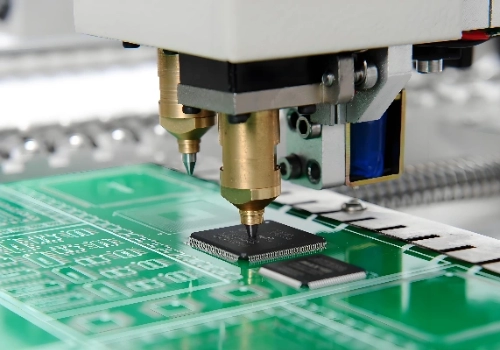

2. Component Placement
Advanced pick-and-place machines position components with ±99% accuracy. Operators verify critical placements before the next stage.

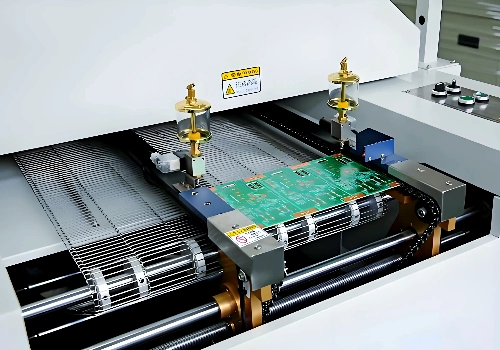

3. Reflow Soldering
Boards pass through a controlled temperature reflow oven with multiple heating zones. We monitor thermal profiles to prevent damage and ensure strong, reliable solder joints.

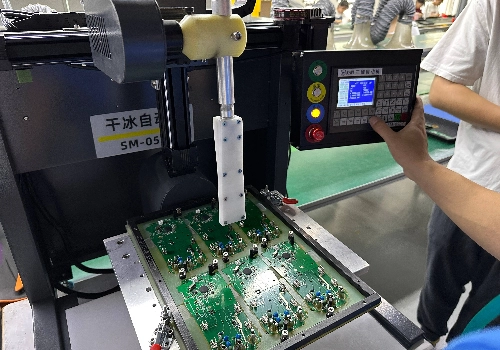

4. Board Cleaning
Automated cleaning removes excess solder flux, leaving boards pristine and eliminating potential corrosion or short-circuit risks.
5. Quality Inspection & Testing
Multi-level inspection includes SPI, AOI, X-ray (for BGA), and full functional testing. We verify 100% of assemblies meet IPC-A-610 standards.

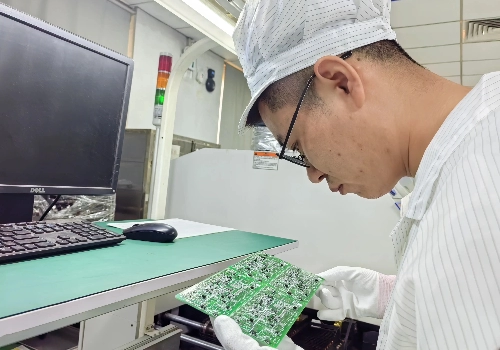

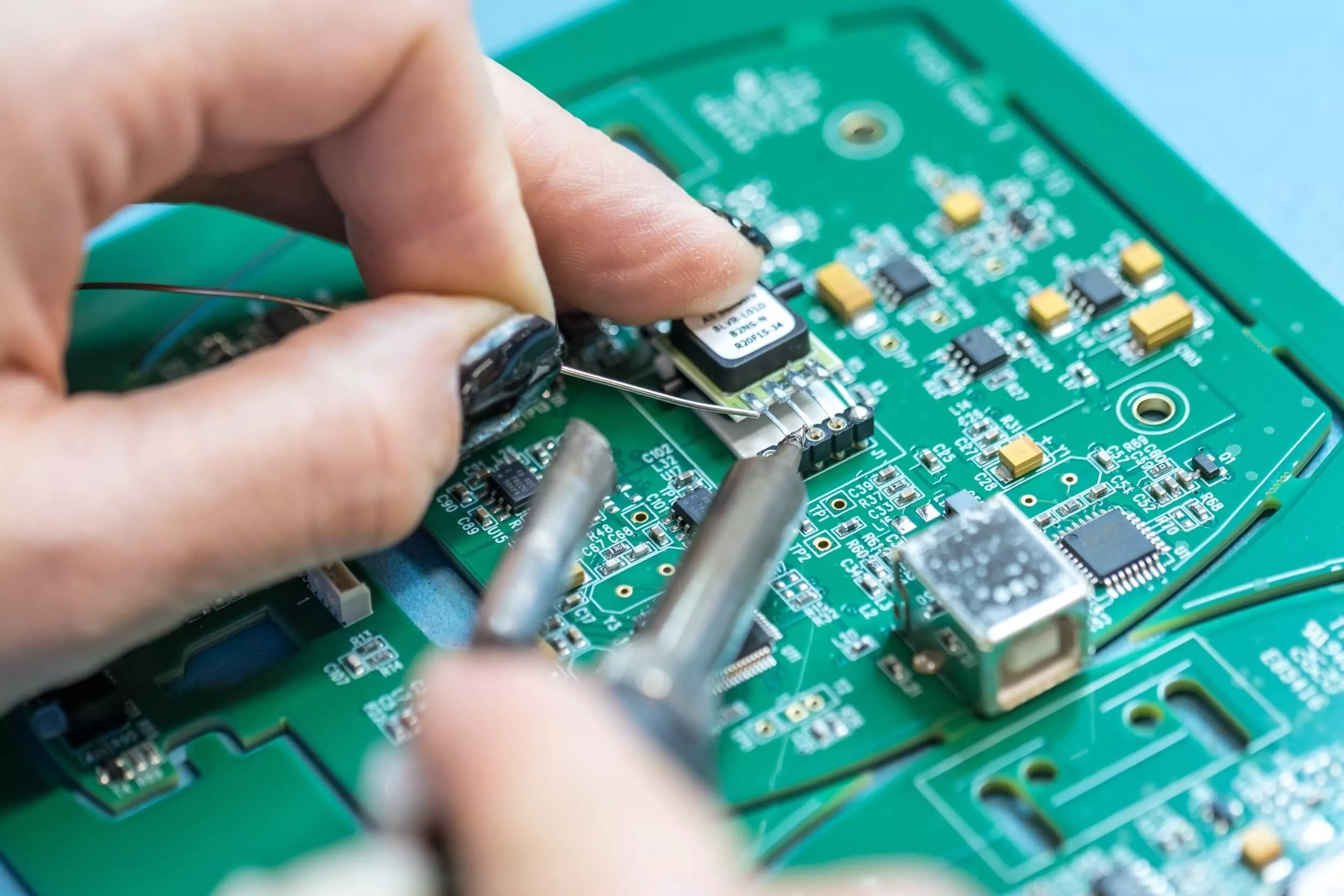

6. Manual Touch-Up
Our skilled technicians perform rework on any boards requiring manual correction, maintaining consistency with production standards.

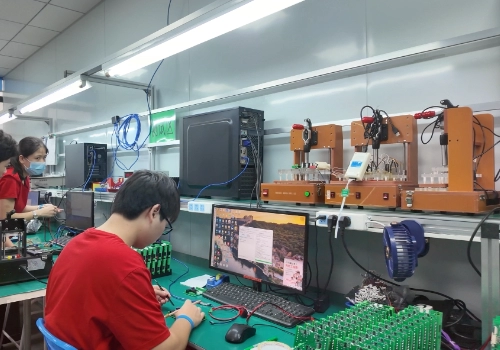

7. Functional Testing
Custom test programs exercise all board functions under real-world conditions. Only boards passing 100% testing proceed to packaging.

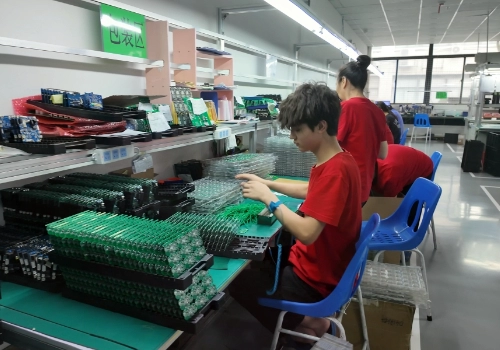

8. Packaging & Delivery
PCBA Boards are carefully packaged in static-safe materials and prepared for shipment according to your specifications.
PCBA Application Industries
From early prototypes to mass production, PCBA failures often happen at the transition point — not in design, but in execution. Our PCBA solutions help customers across industrial, automotive, medical, and consumer sectors avoid rework, quality inconsistency, and supplier switching. With a single manufacturing partner, you gain predictable quality, smoother scaling, and fewer surprises during production.
Factory Control & Motion Systems:
PLC CPU mainboards, remote I/O expansion cards, servo drive power stages, stepper motor controller PCBA, CNC controller cards, industrial Ethernet switch assemblies (PROFINET / EtherCAT).
Robotics & Intelligent Manufacturing:
Robotic joint controller boards, multi-axis motion control PCBA, force/torque sensor interface boards, robot safety control modules, collaborative robot (cobot) control PCBA.
AGVs & AMRs:
Automated guided vehicle (AGV) navigation compute boards, SLAM processing PCBA, LiDAR sensor modules, motor driver boards, power management and charging control assemblies.
Industrial Equipment & Process Control:
Welding system control boards, industrial laser power supply assemblies, machine vision processing boards, temperature, PLCs, instrumentation, water environmental protection systems, power equipment, and CNC systems and pressure control PCBA, industrial safety relay boards.
Instrumentation & Measurement Systems:
Analytical instrument mainboards (e.g., chromatographs, spectrometers), data acquisition (DAQ) boards, signal conditioning PCBA, precision analog front-end assemblies.
Body & Chassis Electronics:
Body control modules (BCM), power distribution control units, window and seat control PCBA, electronic steering and braking control boards.
ADAS & Sensor Systems:
Radar signal processing boards, camera control modules, LiDAR interface and power boards, ultrasonic sensor control PCBA.
Powertrain & Energy Systems:
Battery management systems (BMS), on-board charger control boards, DC-DC converter PCBA, inverter control modules.
In-Vehicle Infotainment & Connectivity:
Infotainment mainboards, digital instrument cluster PCBA, telematics control unit (TCU) assemblies, vehicle gateway control boards.
Commercial & Special Vehicles:
Fleet management control PCBA, vehicle tracking and diagnostics boards, transportation safety monitoring systems.
Patient Monitoring & Life Support:
Vital sign monitoring boards, ECG / EEG signal acquisition PCBA, infusion pump control boards, ventilator controller assemblies.
Medical Imaging & Diagnostics:
Medical imaging control boards, ultrasound processing PCBA, diagnostic analyzer control boards, high-speed data acquisition boards.
Laboratory & Analytical Equipment:
Laboratory analyzer mainboards, sample handling control PCBA, precision temperature control assemblies, optical measurement boards.
Portable & Home Healthcare Devices:
Battery management PCBA, low-noise sensor interface boards, compact embedded controllers for portable medical devices.
Network Infrastructure:
Core and access switch mainboards, router control boards, industrial Ethernet communication PCBA, network interface modules.
Wireless & RF Communication:
RF transceiver modules, antenna tuning and control boards, wireless access point PCBA, 4G / 5G communication modules.
Edge Computing & Gateways:
Industrial IoT gateways, protocol conversion boards (CAN / RS485 / Modbus), edge computing control PCBA.
Signal Processing & Timing:
High-speed signal processing boards, clock and synchronization modules, data transmission interface PCBA.
Power Conversion Systems:
Solar inverter control boards, wind power control PCBA, DC-DC and AC-DC power conversion assemblies.
Energy Storage & Management:
Battery management systems (BMS), energy storage management controllers (EMS), cell monitoring and balancing boards.
EV Charging & Power Distribution:
EV charging station control PCBA, power distribution units (PDU), insulation monitoring and protection boards.
Industrial & High-Power Applications:
High-current driver boards, power protection PCBA, thermal management control assemblies.
Smart Home & IoT Devices:
Smart hub mainboards, wireless control modules, environmental sensor interface PCBA, home automation control boards.
Audio, Video & Display Systems:
Audio amplifier boards, video processing PCBA, display driver and timing control boards.
Personal & Wearable Electronics:
Wearable device PCBA, compact power management boards, charging and battery protection modules.
Appliances & Lifestyle Products:
Smart appliance control boards, motor drive PCBA, human-machine interface assemblies.
Automated Test Systems:
Automated test equipment (ATE) controller boards, fixture control PCBA, measurement interface modules.
Measurement & Calibration Equipment:
Precision measurement boards, signal conditioning PCBA, calibration control assemblies.
Embedded & Custom Control Platforms:
Embedded processor boards, industrial SBC assemblies, customized controller PCBA.
Safety & Monitoring Systems:
Equipment safety monitoring boards, fault detection PCBA, condition monitoring controllers.
IWDF Solutions PCBA Showcase

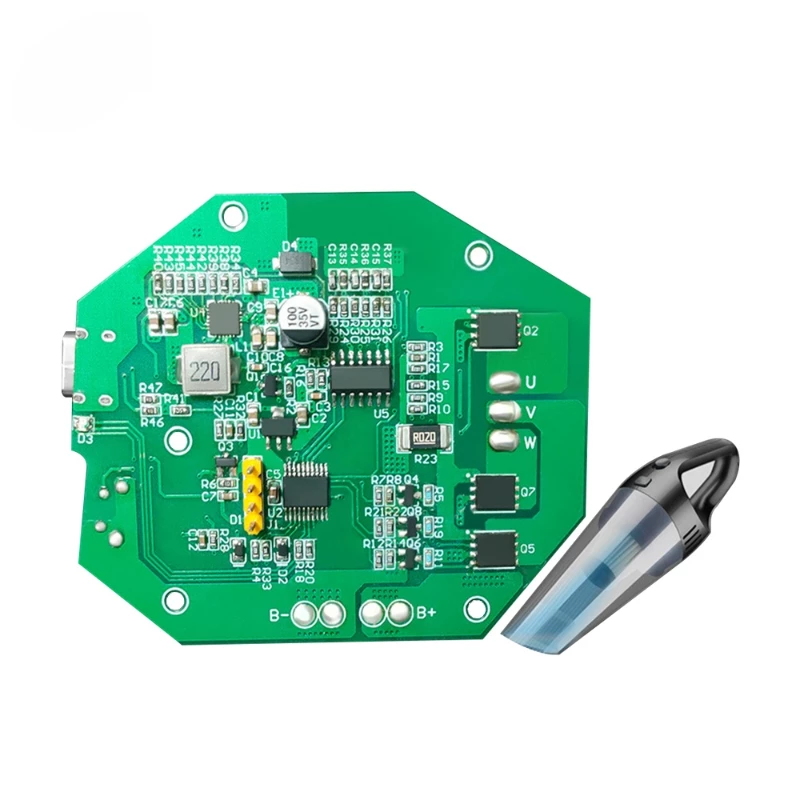

12V High-Suction Automotive Vacuum Cleaner

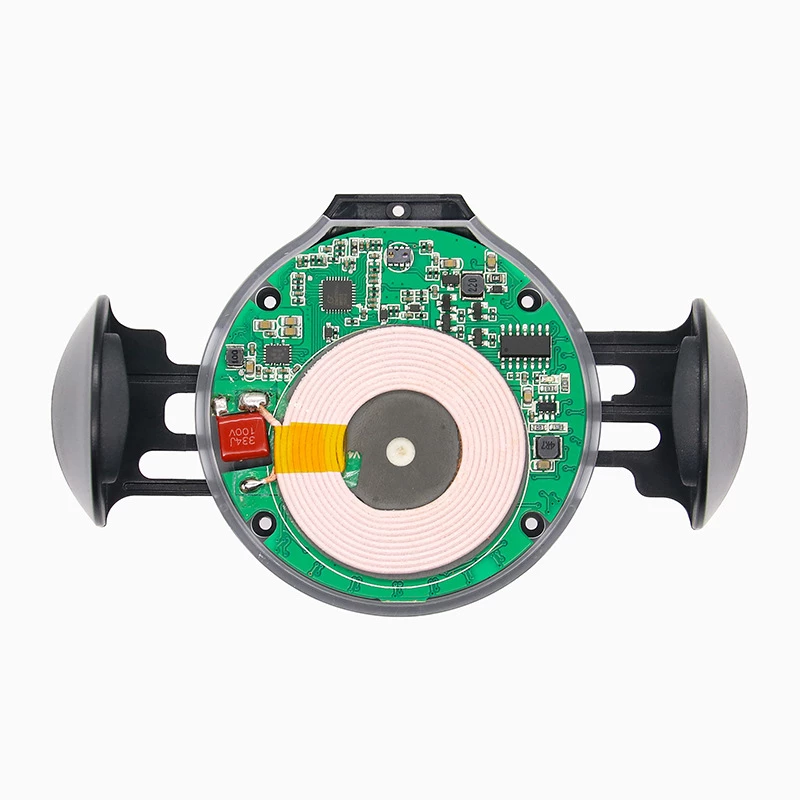

Wireless Charger

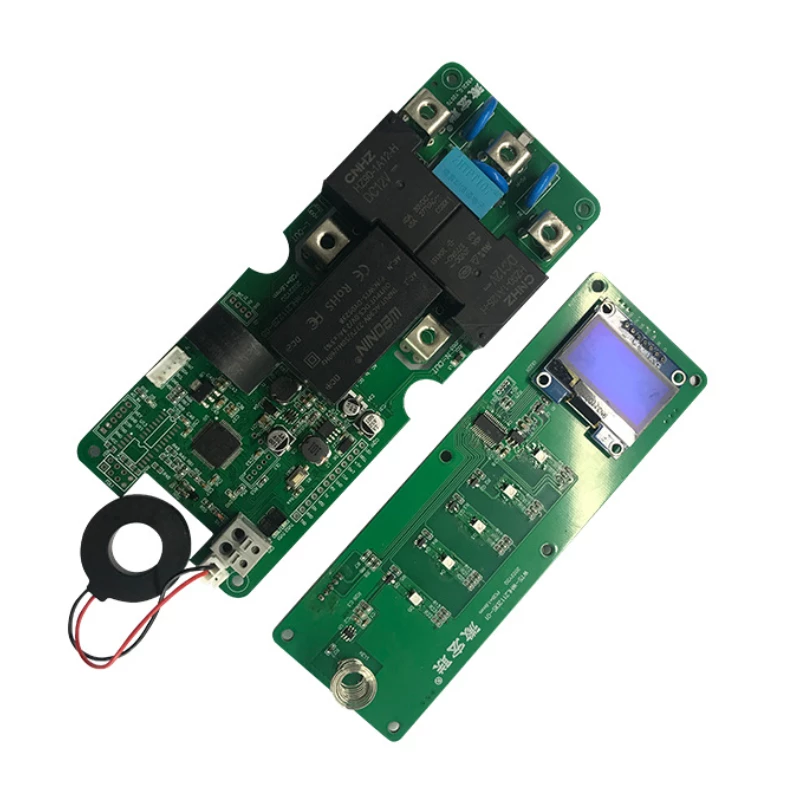

3.5kw Portable EV Charger

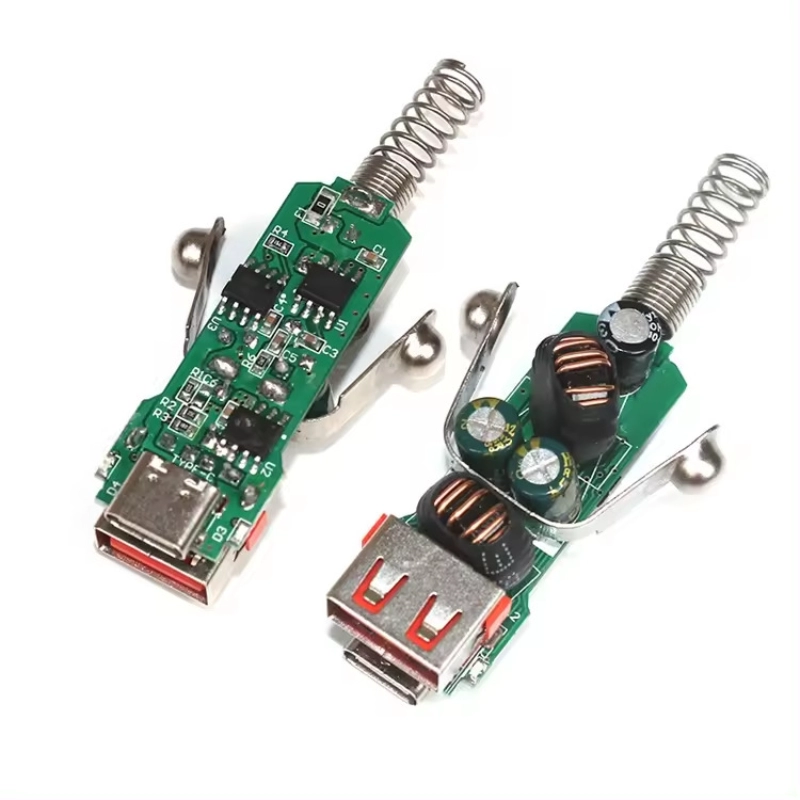

In-Vehicle Charging Module

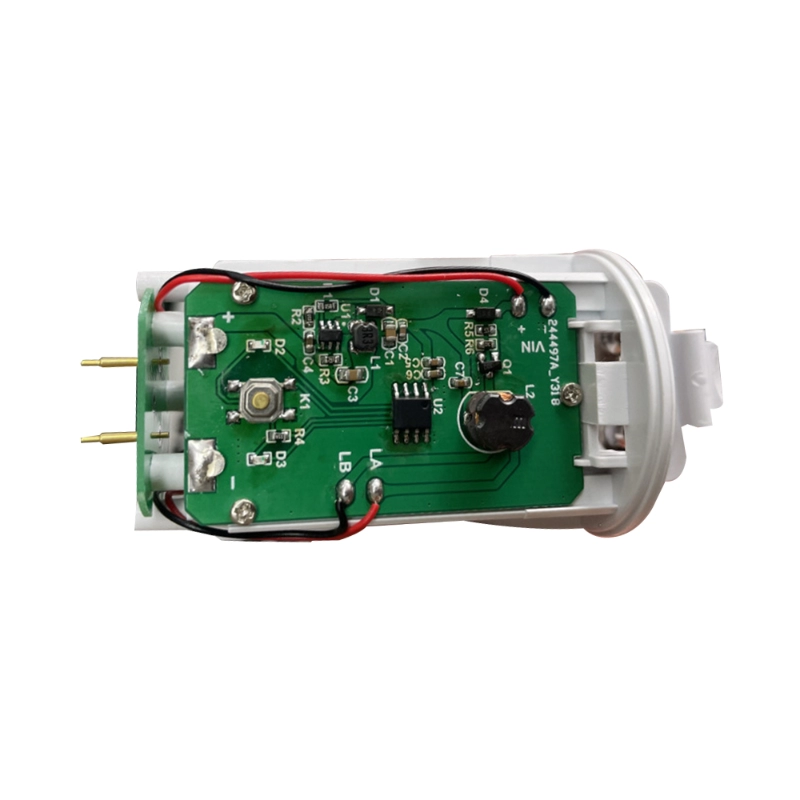

Handheld Nebulizer

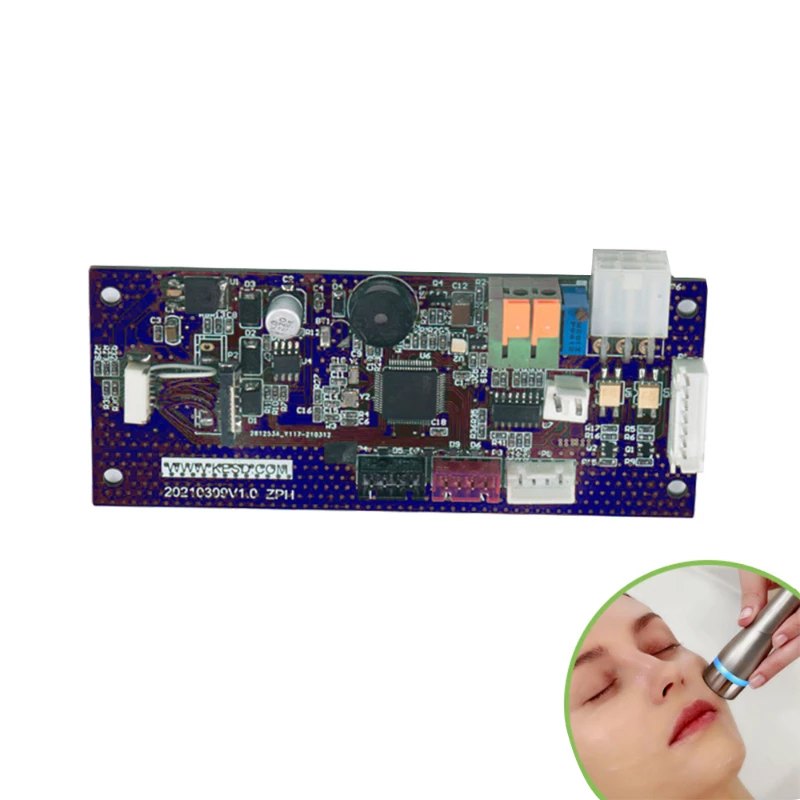

Facial Beauty Device

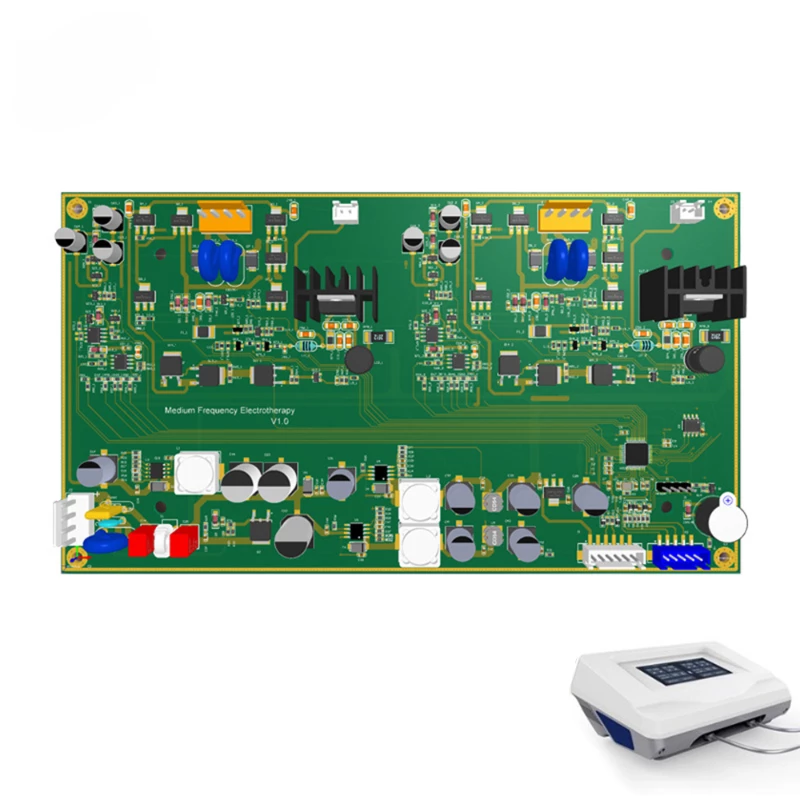

Targeted Transdermal Drug Delivery Device
Wireless Charger
F.A.Q.
We accept orders starting from 1-piece prototypes. There’s no strict MOQ, though volume orders typically receive better pricing. Contact us to discuss your specific project
Yes. We provide full turnkey PCBA services including BOM sourcing, PCB fabrication, SMT/THT assembly, and functional testing — all under one roof. You only need to provide your Gerber files, BOM, and assembly drawings.
We treat customer design files and product information as confidential.
Upon request, we support NDAs and internal access control to ensure your intellectual property is protected throughout the PCBA process.
We apply the same manufacturing standards, inspection steps, and process controls to both small and large batches. This includes incoming material inspection, SPI, AOI, X-ray (for BGA/QFN), and functional testing where required, ensuring batch-to-batch consistency rather than sample-only quality.
We offer flexible sourcing options. You may provide a full or partial BOM, or request turnkey PCBA with component sourcing handled by us.
Our supply chain focuses on traceable components, stable vendors, and risk control for shortages or substitutions, with all changes communicated for approval before production.
We source components from authorized distributors or verified suppliers, supported by incoming inspection and traceability records.
For critical components, we implement additional verification steps to reduce the risk of counterfeit or mismatched parts entering the production process.
Depending on your project needs, we support SPI, AOI, X-ray inspection, ICT, and functional testing.
We can work with your test procedures or assist in developing functional test methods to identify issues early and reduce field failures.
Yes. We regularly assemble PCBA with fine-pitch components, BGA, QFN, multi-layer boards, and mixed technology (SMT + THT).
Our process is optimized for complex layouts, controlled soldering profiles, and stable yield on challenging designs.
To prepare an accurate quote, we typically need your PCB files (Gerber), BOM, assembly drawings, target quantity, and any testing or special process requirements.
If information is incomplete, our engineers will clarify details before quoting to avoid hidden costs later.
We work with overseas OEMs, ODMs, engineering teams, and technology-driven companies across industrial, automotive, medical, energy, and communication sectors.
Whether you are developing a new product or scaling an existing one, we adapt our PCBA support to your project stage and complexity.
