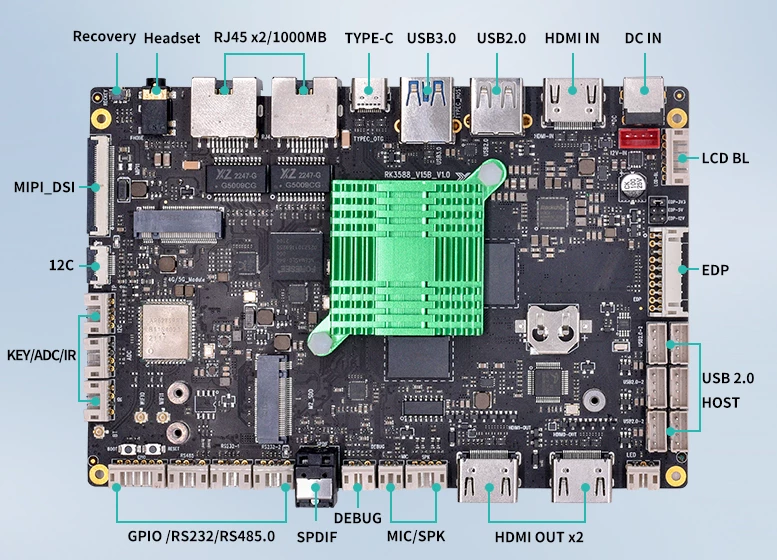

RK3588 Full-Featured Development Board

— Engineered for edge AI, automation, and vision applications — combining 8-core CPU, 6TOPS NPU, and industrial-grade reliability.

Introduction: From Chip to Product-Ready Platform

The RK3588 is a flagship-level SoC, a powerhouse of processing with its eight-core CPU, 6 TOPS NPU, and 8K multimedia capabilities. Our goal was not just to build a simple validation board, but to engineer a “product-ready” reference design for the most demanding applications in industry, AIoT, and edge computing.

Taking on a high-performance processor of this caliber presents four fundamental engineering challenges that must be solved with precision:

Signal Integrity (SI) for ultra-high-speed data.
Power Integrity (PI) for stable, multi-domain power delivery.
Thermal Management to handle significant heat dissipation.
Electromagnetic Compatibility (EMC) for reliable operation in complex environments.

Core Design & Engineering Highlights

This is the technical heart of our solution, demonstrating our expertise in taming high-performance SoCs.

Advanced PCB Stack-up & Process

8-Layer HDI Blind Via Design
An 8-layer stack-up provided the necessary layers for clean power planes and uninterrupted signal routing. We utilized an HDI (High-Density Interconnect) process with blind vias, essential for successfully routing the dense 0.5mm pitch BGA of the RK3588 while minimizing signal crosstalk.
Reliable Materials & Finish
We selected a high-quality FR-4 substrate for its proven reliability and cost-effectiveness, paired with an ENIG (Electroless Nickel Immersion Gold) surface finish to ensure excellent planarity and signal integrity for high-frequency components.

Power Integrity (PI) Design

A Lifeline for a Power-Hungry Core
We engineered a robust power delivery network to satisfy the RK3588's complex multi-voltage, high-current demands, creating a stable foundation for the entire system.
Low-Impedance Power Delivery
Our strategy involved using large copper pours and dedicated internal power/ground planes to create a low-impedance path, ensuring stable voltage rails even under heavy processing loads.
Industrial-Grade Surge Protection
The power input is protected by a multi-stage circuit including TVS diodes, capable of withstanding up to 280V surges to meet demanding industrial environment requirements.

Signal Integrity (SI) Design

Mastering High-Speed Signals
The board is packed with high-speed interfaces like PCIe 3.0, USB 3.0, HDMI 2.1, and LPDDR4. Each required meticulous design to function correctly.
Precision Impedance & Length Matching
We enforced strict impedance control (50Ω single-ended / 100Ω differential) and precise length matching (e.g., within ±5mil for DDR buses) to guarantee flawless data transmission.

Electromagnetic Compatibility (EMC) Design

Exceeding EMC Standards
Our design successfully passed all EMI/EMC tests with a healthy 3-4dB margin above the required standard, proving its robustness against interference.
Multi-Faceted EMC Strategy
This was achieved through a combination of extensive ground planes, shielding cans over critical components (CPU, DDR), targeted filtering circuits on all ports, and layout optimization to minimize high-frequency current loop areas.

Protection & Reliability Design

Multi-Layered ESD Protection
All external interfaces (USB, Ethernet, HDMI) are fortified with ESD protection, tested to withstand Air 15KV and Contact 8KV, ensuring survival in harsh real-world conditions.
Industrial-Grade Components
We exclusively used components rated for an industrial temperature range (-20°C to 70°C), making the board ready for deployment in uncontrolled environments.

Strategic Layout & Thermal Management

Optimized Component Placement
The core components—RK3588, LPDDR4, and the PMIC—were placed in close proximity. This critical decision shortens the high-speed traces and power delivery paths, which is essential for signal integrity and stable power. All external interfaces were positioned near the board edge for easy access and effective ESD protection.
Advanced Thermal Solution
To manage the RK3588's thermal output, we designed a thermal via array directly under the SoC. This creates a low-resistance path to conduct heat from the chip to the back side of the PCB, where it can be efficiently dissipated by a custom heatsink or fan assembly.

Performance & Function Realized

Unleashed AI Power
The 6 TOPS NPU delivered sustained performance for complex AI workloads.
Stunning 8K Display
Flawless, stable dual 8K60 video output was achieved via the HDMI 2.1 ports.
High-Speed Storage & Connectivity
The PCIe 3.0 SSD interface and Wi-Fi 6 / Gigabit Ethernet ports all performed at their maximum rated speeds without errors or disconnections.

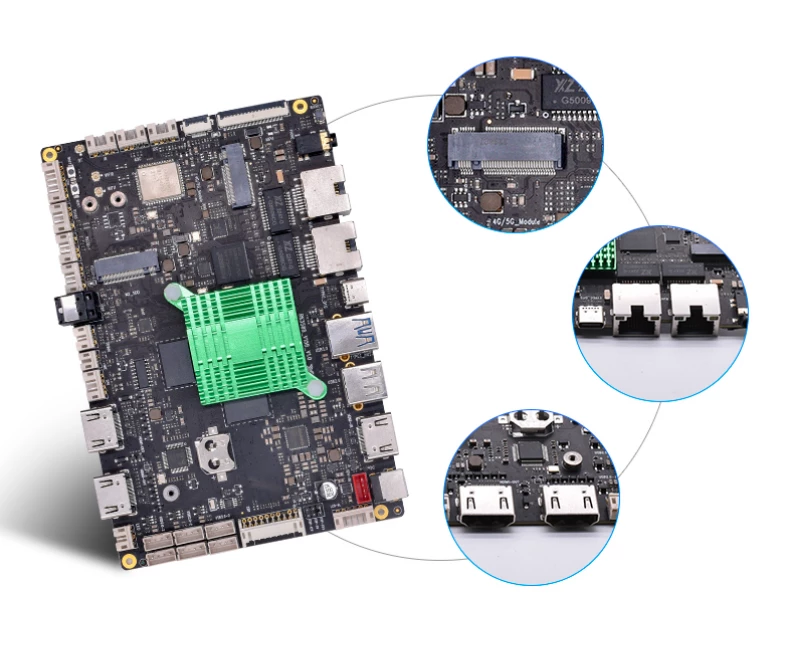

Powering Next-Generation Applications

With its industrial-grade reliability, rich I/O, and immense processing power, this board is an ideal platform for the most demanding market segments:

High-Performance Edge Computing:
Processing complex data locally for applications like smart city infrastructure and automated retail.
Advanced AIoT Gateways:
Serving as the intelligent hub for a network of IoT devices, running complex AI inference models.
Industrial Control & Machine Vision:
Powering sophisticated factory automation, robotics, and quality inspection systems.
8K Digital Signage & Multimedia Servers:
Delivering flawless, high-bandwidth video content for commercial displays and streaming solutions.

Item	Specification
WIFI	Wi-Fi 6 2T2R 802.11a/b/g/n/ac/ax 2.4G+5G MIMO
Bluetooth	BT 5.3 Module
Ethernet	2-way 100M/1000M Adaptive Ethernet; RJ45 x2
M.2-1	Supports 4G/5G communication modules / Supports expansion computing modules, up to 50 TOPS computing module
M.2-2	PCIe-SSD, supports up to 2TB
Display	EDP1 (Up to 7680x4320 @ 60fps); MIPI_DSI1 (Up to 2560*1440@60fps)
Touchscreen	Supports I2C interface multi-touch screen
Camera	MIPI CSI: Supports up to 16MP
HDMI-1	HDMI 2.1 (7680x4320 @ 60fps or dual 3840*2160@60fps)
HDMI-2	HDMI 2.1 (7680x4320 @ 60fps or dual 3840*2160@60fps)
HDMI IN	Up to 3840*2160@30Hz IN
USB 2.0-A	USB 2.0 HOST*1
USB 3.0-A	USB 3.0 HOST*1
TYPE-C	Up to 5Gbps data rate for USB 3.0; Up to 5.4Gbps (HBR2) data rate for DP1.2, supports 1/2/4 lane mode
DC IN	Ø 3.5mm; 12V~3A
Audio	Ø 3.5mm CTIA
Expansion Card	Supports TF card; SIM card
Optical Fiber	SPDIF
Expansion Interface
Serial Port	RS232 x2; RS485 x1; GPIO x3
IR	Supported
RTC	Supported
SPK	Left/Right channel output, 8Ω/3W speaker
MIC	Supported
USB	Six USB 2.0 HOST ports
ADC/KEY	Supported
Dimensions	150mm * 100mm
