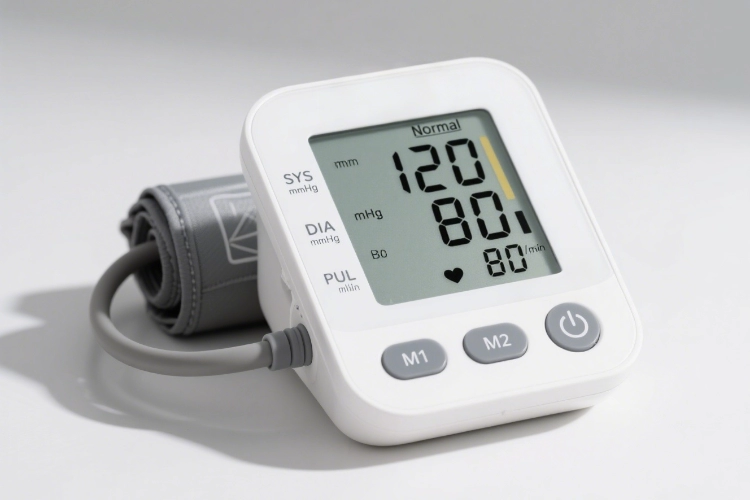

Medical Blood Pressure Monitor Redesign
The Challenge: A Crisis of Accuracy and Cost
The client's business was threatened by a combination of technical and commercial pain points:
Inaccurate Readings
Their current model suffered from inconsistent and unreliable readings. This was due to a poorly designed analog circuit that was highly susceptible to electrical noise, leading to customer complaints and damaging brand trust.
High Production Costs
The existing PCB was not designed for efficient mass production. A high failure rate during their internal final testing led to significant rework, waste, and increased costs.
Lack of In-House Expertise
Their team lacked the specific skills in low-noise analog layout and medical-grade PCB design required to solve these core issues. They were experts in assembly, not electronics, and they were stuck.
The Vision: A Foundation of Trust
- Achieve clinical-grade accuracy and repeatability to build a product their customers could trust.
- Significantly reduce the final PCBA production cost by at least 20%.
- Find a single, reliable partner to provide a fully tested, "drop-in" electronic module, simplifying their supply chain and internal workload.
Our Solution: Engineering for Safety and Scale
- PCB Technology: A 4-layer FR-4 board with a dedicated internal ground plane for noise shielding.
- Power Architecture: Implemented ultra-low-noise LDOs (Low-Dropout Regulators) to provide clean, stable power to the analog front-end (AFE).
- Analog Front-End (AFE): Utilized a "guard ring" layout technique to isolate the sensitive operational amplifier from digital noise.
- Component Sourcing: Sourced high-precision, low-drift resistors and capacitors for the critical signal path.
Our Design & Development Process
Our integrated process is designed for speed, precision, and reliability.
- Safety-Driven Layout & Isolation: We engineer physical isolation using milled slots and strict adherence to IEC 60664 standards to guarantee high-voltage safety and prevent catastrophic failure.
- Flawless Communication Bus Design: By implementing 120-ohm impedance control and shielded routing, we ensure the CAN bus delivers error-free data, even in noisy electrical environments.
- Integrated Design for Assembly (DFA) Our designs are inherently optimized for our own SMT lines, which eliminates potential production issues, reduces your total cost, and ensures a smooth ramp-up to mass production.
- Accelerated Prototyping Cycle We deliver fully assembled prototypes in just 10 days. This allows your software and hardware development to proceed in parallel, dramatically accelerating your time-to-market.
Our Design & Development Process
Our integrated process is designed for speed, precision, and reliability.
- Requirements Analysis: We worked with the client to define precise accuracy targets (e.g., ±3 mmHg), power consumption limits for battery life, and key compliance requirements for the IEC 60601 medical device standard.
- Schematic Design: Our engineers designed a new schematic with a focus on noise reduction, selecting precision components and implementing robust filtering for the power and signal lines.
- PCB Layout & Routing:This was the most critical step. We created a physically isolated "quiet zone" on the PCB exclusively for the sensitive analog measurement circuits, ensuring digital noise could not corrupt the readings.
- SI/PI Analysis:We ran simulations to verify the power delivery network (PI), confirming that the analog components received exceptionally clean and stable power, free from the fluctuations that cause inaccurate measurements.
- DFM/DFA Check: Our designs were inherently optimized for our own S-M-T lines, which eliminated potential production issues, reduced total cost, and ensured a smooth ramp-up to mass production.
- Prototyping & Testing: We delivered fully assembled prototypes in just 12 days. Each prototype was rigorously tested against a calibrated, clinical-grade reference monitor to validate its accuracy and reliability.
- Mass Production: Upon successful validation, the project was transitioned to our ISO 13485 (Medical Device Quality Management) certified production lines for high-volume manufacturing.
Happy Clients!
How We Control Quality
For medical devices, quality is absolute. Our processes are designed to ensure it.
- Certifications: Our facility is ISO 13485 certified, the global standard for medical device quality management.
- Full Traceability: We maintain end-to-end traceability for every critical component from sourcing to final assembly.
- 100% Functional Testing: Every single PCBA is tested in a custom-built, calibrated test jig to verify its measurement accuracy before it ships.
- Strict ESD Controls: Our entire assembly process is managed under strict electrostatic discharge (ESD) protocols to protect sensitive electronic components.
The Results: Accuracy Delivered, Costs Reduced
Measurement deviation was reduced by over 70% compared to their old model, consistently meeting the stringent accuracy standards required for medical devices.
The final, mass-produced PCBA cost was 25% lower than their previous model, achieved through superior design-for-manufacturing (DFM) and strategic component sourcing.
The client now receives a fully tested, calibrated, and ready-to-install electronic module, reducing their internal final assembly and testing workload by 40%.
